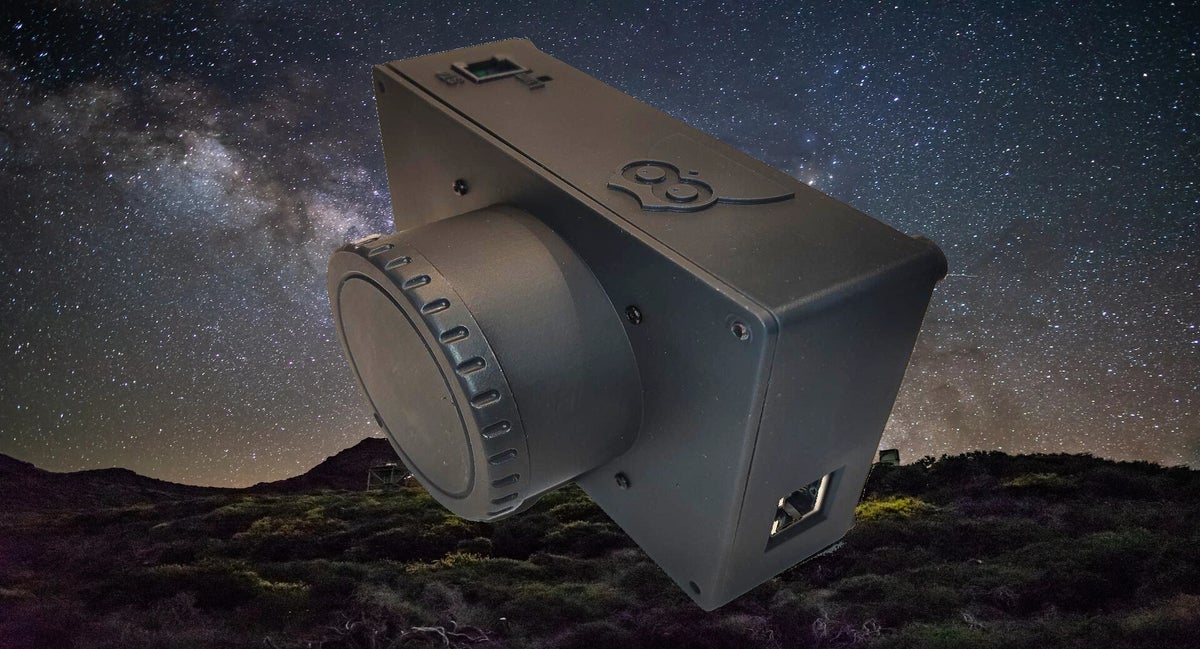

What is Astrowlbox ?

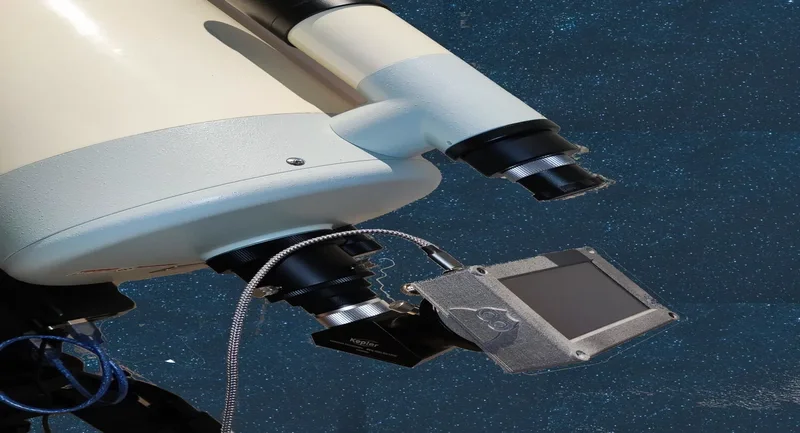

The Astrowlbox is all in one and ultra-portable system that will give you easy access to celestial objects unreachable with naked eyes like galaxies, nebula, stars clusters and so on. Just install the Astrowlbox like any eyepiece on your telescope and thanks to its high sensitivity discover faint celestial objects full of details and colors (have a look to the gallery) even in heavy light polluted environnements (pictures in the gallery were taken near Paris). No extra cables, computer, camera, … are needed. Everything is already in the Astrowlbox.
What's inside Astrowlbox ?
The Astrowlbox has been designed around the highly sensitive and large Sony IMX283 sensor and a builtin ST4 autoguiding port.
Realtime image processing are done by the newly release Raspberry Pi5 (3x faster than previous Pi4)
See celestial objects

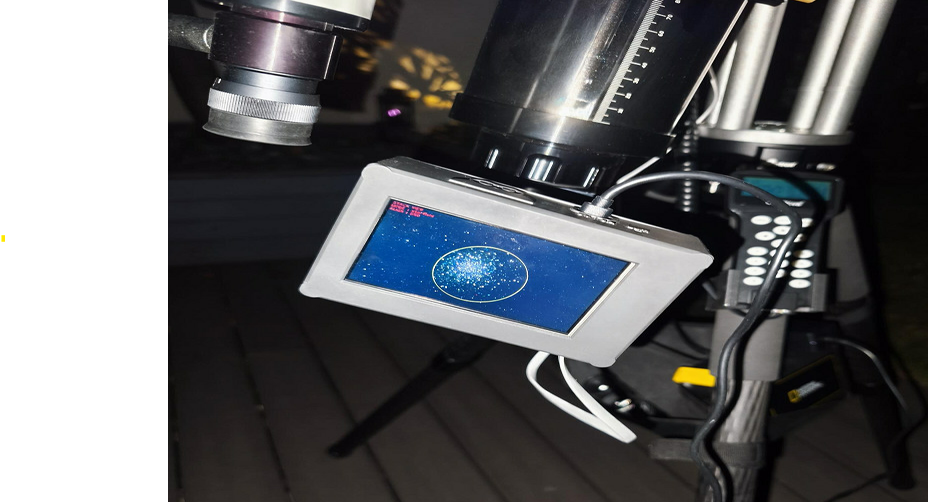

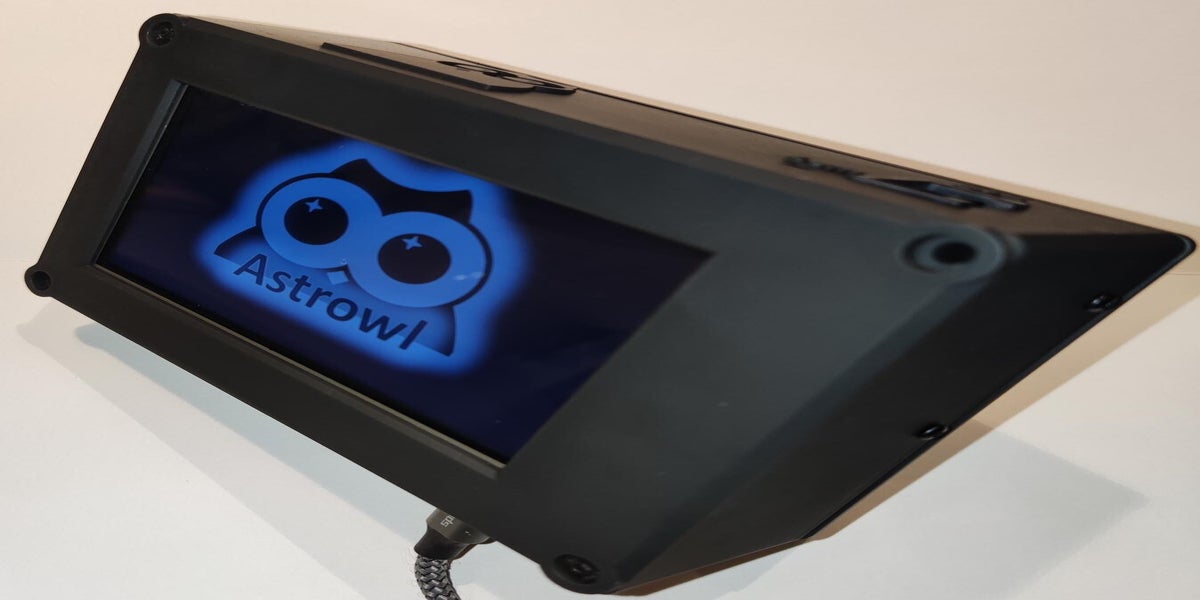

It onboards a 4” touch screen (1280x720) to display celestial targets you have pointed with your scope.
You can also display live image with a resolution of 3200x1800 on your smartphone, tablet or computer from the Astrowlbox user interface.
The new box V3, has also a ST4 guiding port for autoguiding your mount.
Add astronomy accessories to Astrowlbox.

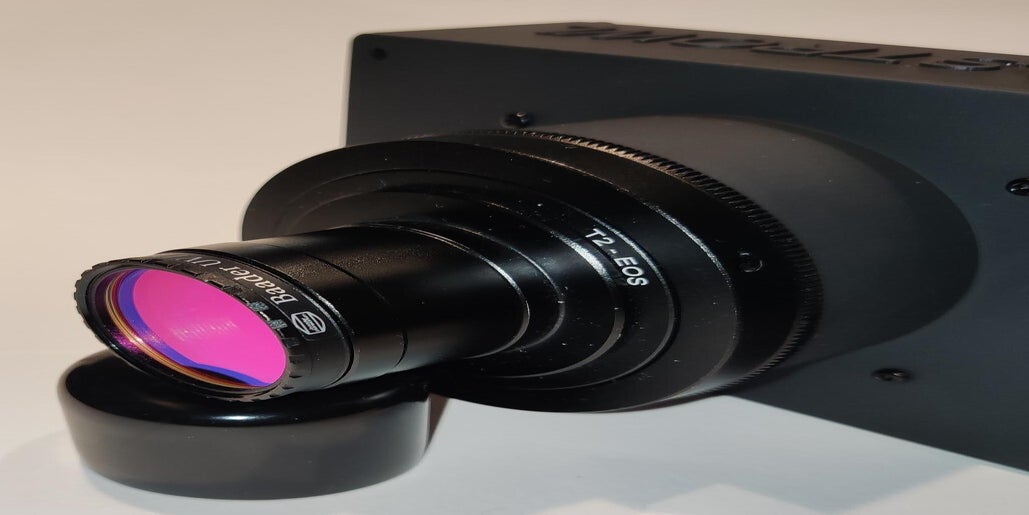

The T2 ring adapter in front of the Astrowlbox will give you access to wide range of astronomy accessories: 1.25” and 2” adapters, tele-extender, eyepiece projection, filters, …
What are Astrowlbox functionnalities ?

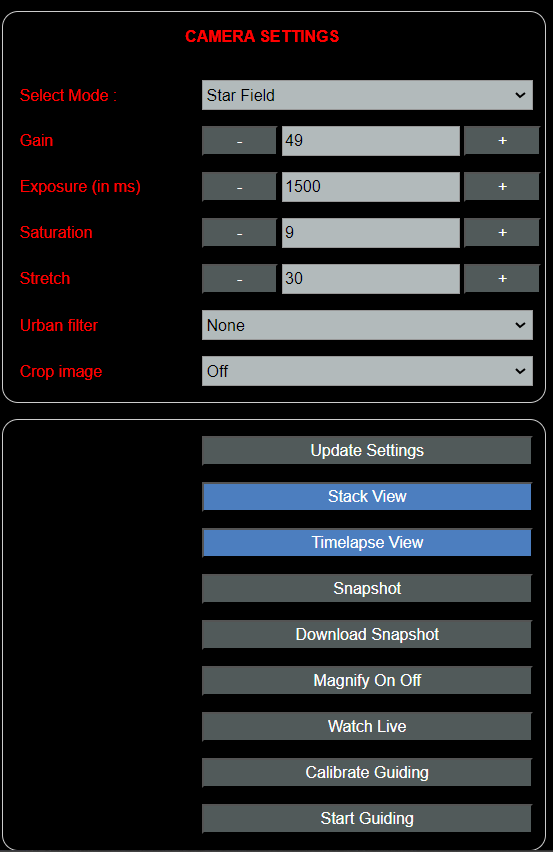

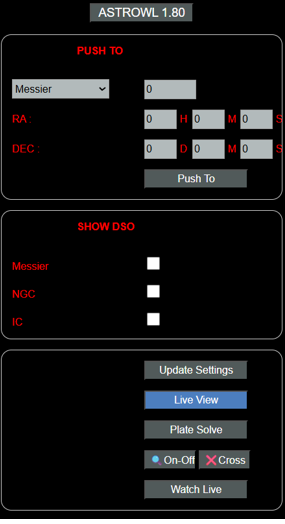

The Astrowlbox offers functionalities typical to astronomy imaging that can be customized from the user interface running on any devices with a wifi connexion (like smartphone, tablets, computer, …) and a browser (chrome, edge, firefox, …) : Gain, Exposure, Urban filter (to cancel light pollution), Stretch (to improve faint objects), Saturation, take snapshot of celestial targets, ST4 autoguiding, ...

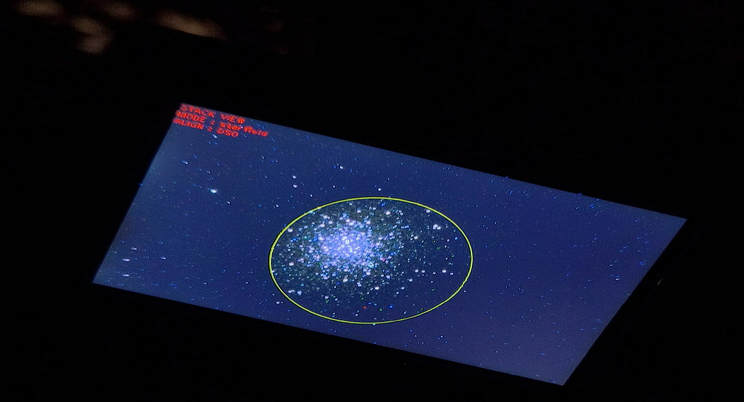

From stack view, you will be able to apply in realtime typical astro imaging post processing like Contrast enhancement, Deconvolution, Wavelet Sharpen, Frame Rejection…
Solar observers are not forgotten, a new functionnality to easily make timelapse videos has been added to Astrowl Box software (see below screenshot for available parameters and you can have a look in user guide for more details).
You can also use this functionnality to create video of any dynamic astronomy scenes.
